Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine

  • >=1 Sets
    $18,000.00
Model Number:
QJ 51-200-1000
Power(W):
5.5KW
Customization:
Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
18months
Type:
Tile Forming Machine
Production Capacity:
0~4m/min
Certification:
CE/BV/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant
Condition:
New
Tile Type:
Colored Glaze Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
QianJin
Voltage:
415V/3Phase/50Hz
Dimension(L*W*H):
12000mm*1900mm*1600mm
Weight:
10.5Tons
Key Selling Points:
Long Service Life
Roll Forming Machine name:
Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine
Color:
Grey and yellow
Exported Country:
United Kingdom
Computer Control Cabinet:
Black
Covered with:
Safety shield
Hydraulic pressing system:
Double guide pillar
Hydraulic cutting system:
Double cylinder
Machine too long:
make it into two parts
Feeding platform:
with per-hand cutting
Transmission:
Sprocket and chain
Supply Ability
Supply Ability:
20 Set/Sets per Month Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Mac
Packaging & Delivery
Packaging Details
Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine :
Covered with plastic film and fixed well by wire rope in 20 foot container, spare parts are packed by carton box.
Port
Tianjin Port, China

Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine

Product Description

The finished product of Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



No.

Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine

1

Suitable material

PPGI/Aluminium sheet/galvanized sheet/various sheet plates

2

Thickness of coil sheet

0.3-0.8mm

3

Coil width

1250mm

4

Effective width

1000mm

5

Material of main frame

400H steel structure, strong and durable

6

Diameter of Soild shaft

70mm, high grade 45# steel

7

Roller

High grade 45# steel, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm

8

Thickness of middle plate

18mm, 45# steel plate

9

Forming station

23 rows

10

Drive type

By chain(1.0 inch), link bearing model 6210

11

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

12

Sidewall connection bar

25mm, zinc plated

13

Forming speed

About 12-18m/min

14

Hydraulic pump station

5.5 kw, 40# hydraulic oil

15

PLC

Mitsubishi, Japan

16

Material of razor blades

Cr 12, quenching 58-62

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18

Switch

CHNT

19

Frequency changer

SAJ

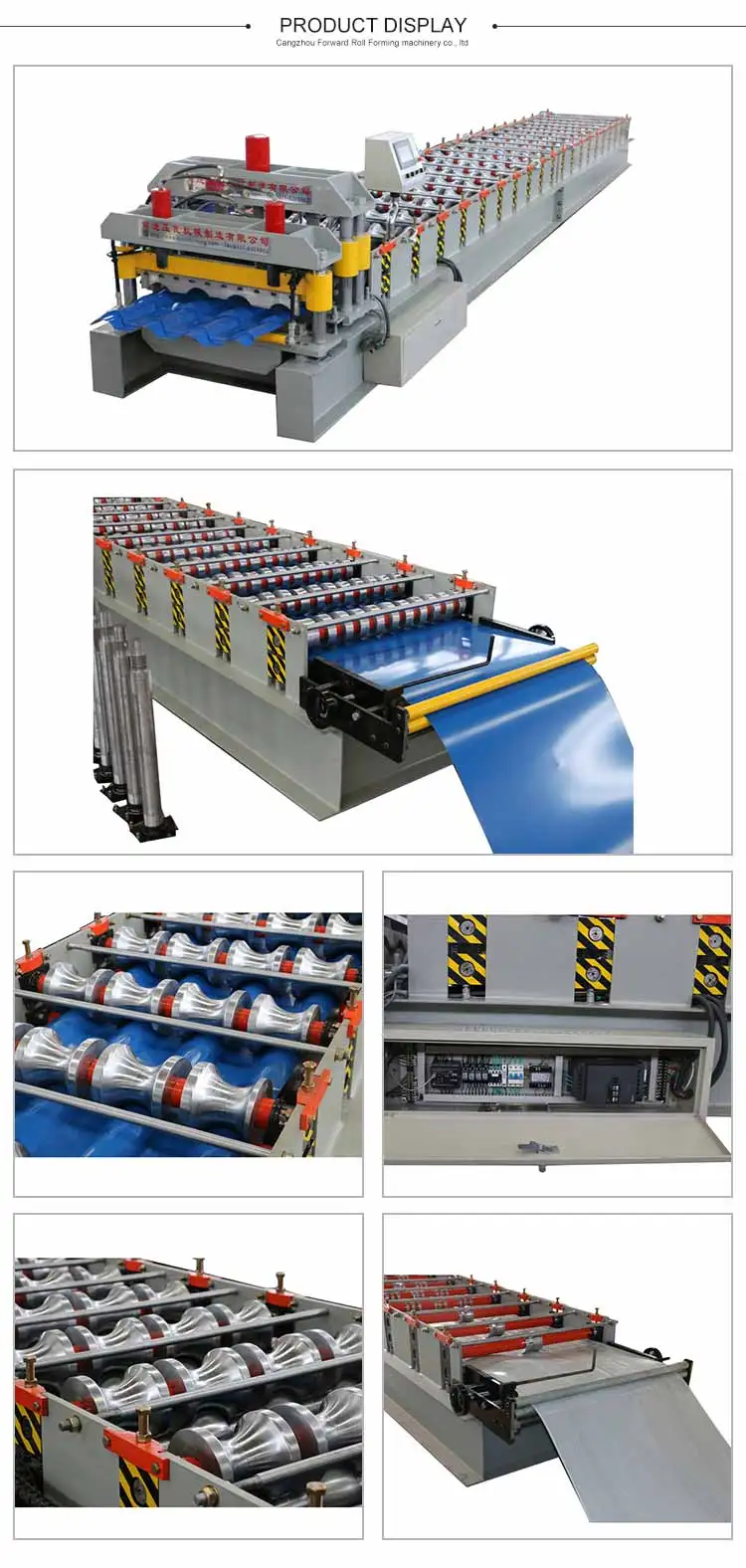

Product Overviews





Company Information

Hot Sale



Packaging & Shipping

1.We have professional technicians for loading

   Guaranteed the goods load into container without any damage.

2.Transportation : Machines need one 40 feet container to hold.

About us

FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. Whats your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?

A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).

      2) Shanghai Hongqiao to Cangzhou West (4.5 hours)

      3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

When you arrive our station, we will arrange to pick up you there!
