roof ridge tiles building materials machinery metal roof ridge cap roll forming machine

  • >=1 Sets
    $10,000.00
Model Number:
QJ450
Power(W):
5.5kw
Customization:
OEM (Min. Order: 1 Sets)
Samples:
$10,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
10-15 m/min
Certification:
TUV,ISO ,CE
Condition:
New
Place of Origin:
China
Brand Name:
QJ
Voltage:
380v
Weight:
5.5t
Use:
Roof
Dimension(L*W*H):
8m*1.3m*1.3m
Tile Type:
Colored Steel
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
rolling rows:
11 rolls
driving method:
hydraulic
Cutting blade material:
Cr12
material thickness:
0.4-0.7mm
Color:
blue or as your request
Warranty:
1.5 YEAR
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude packing in the 40 feet container but with steel rope fixed well and other compents such as the computer control cabint will be packed with waterproof cloth and cardboard ifthe roll forming is too long we can divide into two parts but in one package with welding
Port
tianjin port

Factory Overview


Qianjin Forming----Your Best Cold Roll Forming Machine solution Supplier!!!

roof ridge tiles building materials machinery metal roof ridge cap roll forming machine
machine specification

NO.

Item

Specification

1

Processing material



2

Processing thickness

0.2-0.8mm

3.

Coil width

500mm

4.

cover width

312mm

5.

Material of main frame

300H steel

6. Diameter of Soild shaft 70mm, high grade 45# steel
7. Roller

Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8. Thickness of middle plate 16mm
9. Forming station 16 station

10.

Transmission

By chain(1.0 inch) link bearing model 6210

11

Power of main motor

5.5kw with Cycloidal reducer

12

Power of pump station

4kw

13

Forming speed

about 8-10m/min

14 Hydraulic cutting Controlled by PLC
15 PLC DELTA(TAIWAN)/Mitsubishi
16 Material of razor blades Cr 12, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial standard ±3mm).

18 Switch CHNT
19 Transducer SAJ
Machine picture

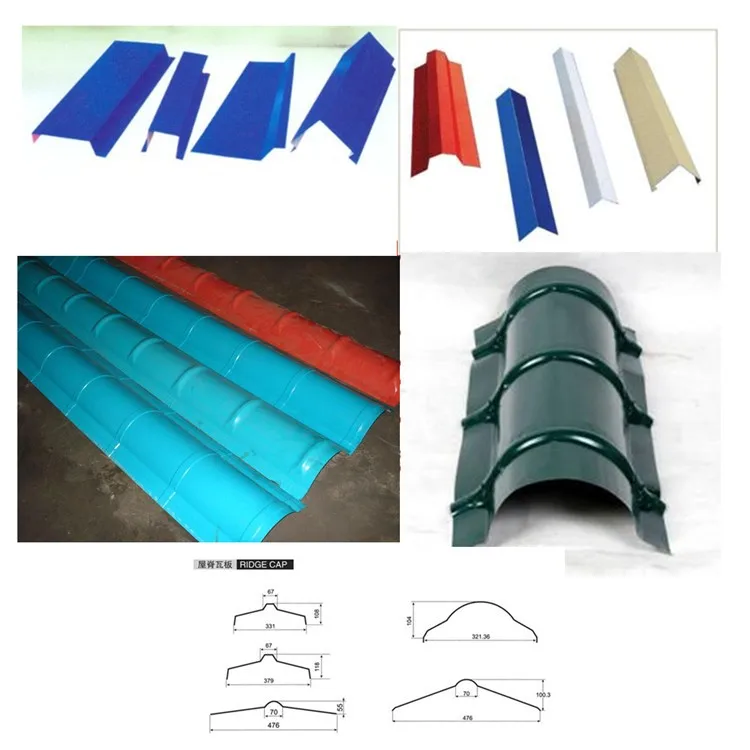

Orther type of roof ridge:(We can design and produce the machine as your request,welcome to send us your sepecification or drawing ,we will give you a satisfied solution. )



ridge cap pic..jpg





Packaging & Shipping


Our Services



Customer Board

Company Information

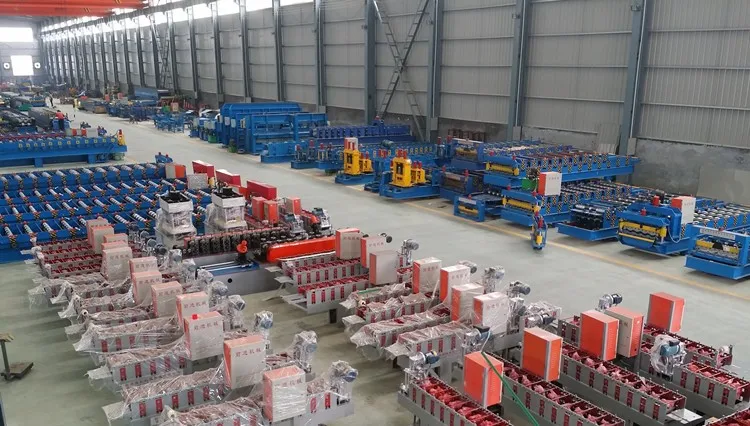

Factory



FAQ:

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
