Double Layer Roll Forming Machine rollformers Metal Roofing Corrugated Steel Sheet and trapeozidal roof sheet forming machine

  • >=1 Sets
    $23,500.00
Model Number:
YX820-836
Power(W):
5.5KW+4KW
Customization:
Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
18 months
Type:
Tile Forming Machine
Production Capacity:
8-12m/min
Certification:
ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
QJ
Voltage:
380V 50HZ 3 Phase
Dimension(L*W*H):
8500*1550*1910mm
Weight:
9 Tons
Key Selling Points:
Easy to Operate
Item:
double roofing sheet forming machine
Control system:
Delta
Raw material:
PPGI
Cutting blade material:
Cr 12Mov
Roller material:
45# Steel Plated
diameter of shaft:
70mm
base frame:
500H
wall plate:
16mm
motor:
shanghai lichao
steps:
16 rows
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Main machine is naked. PLC system is packed by wooden box.
2. need a 40GP to hold.
Port
Tianjin Port
Video Description
Product Description

Double Layer Roll Forming Machine rollformers Metal Roofing Corrugated Steel Sheet and trapeozidal roof sheet forming machine


Product Application

This type of roof sheet has advantage including beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE

Raw Material
feeding width
mm
up layer   1000
down layer   1000
effective width
mm
up layer       820
down layer     836
thickness
mm
0.3-0.8

Main Roll Forming Machine
roller material
45# steel plated with chrome
diameter of shaft
mm
70
roller station
steps
up layer      16
down layer16

Main Configuration
main motor power
kw
5.5
hydraulic station power
Kw
4
control system
PLC brand
Mitsubishi

Main Features

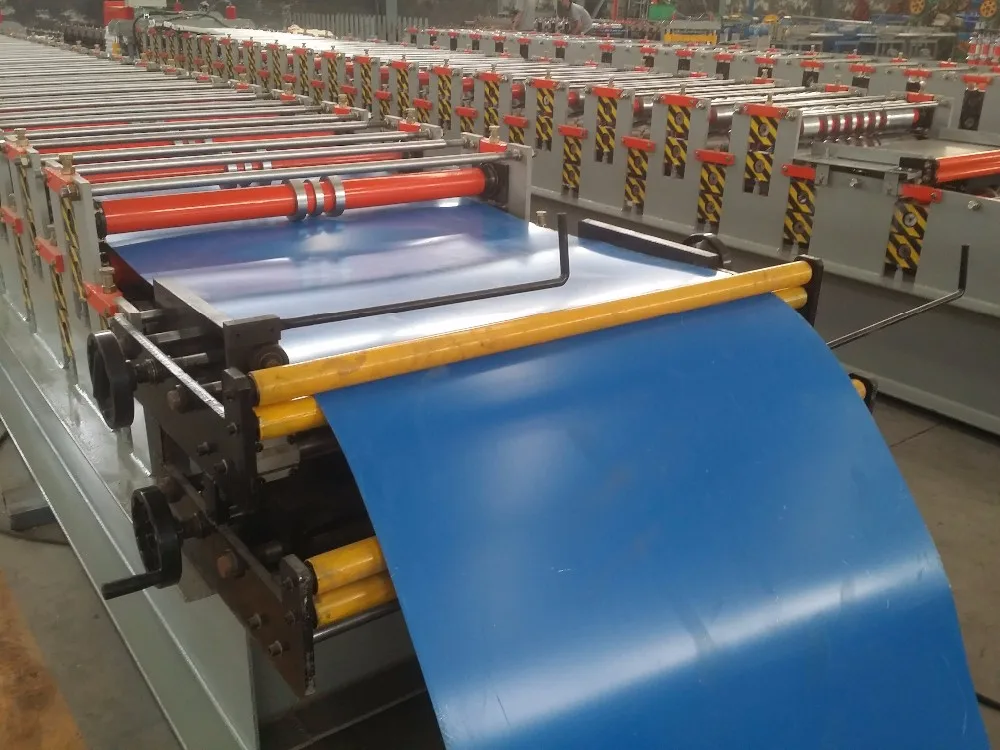

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3.Fully Automatic Control System with PLC.

4.Easy operation: Key in the length and quantity on the control panel.

5.1.5 years warranty.

6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

7.One roll forming machine only can produce one profile.

Certifications
Detailed Images

Machine Parts

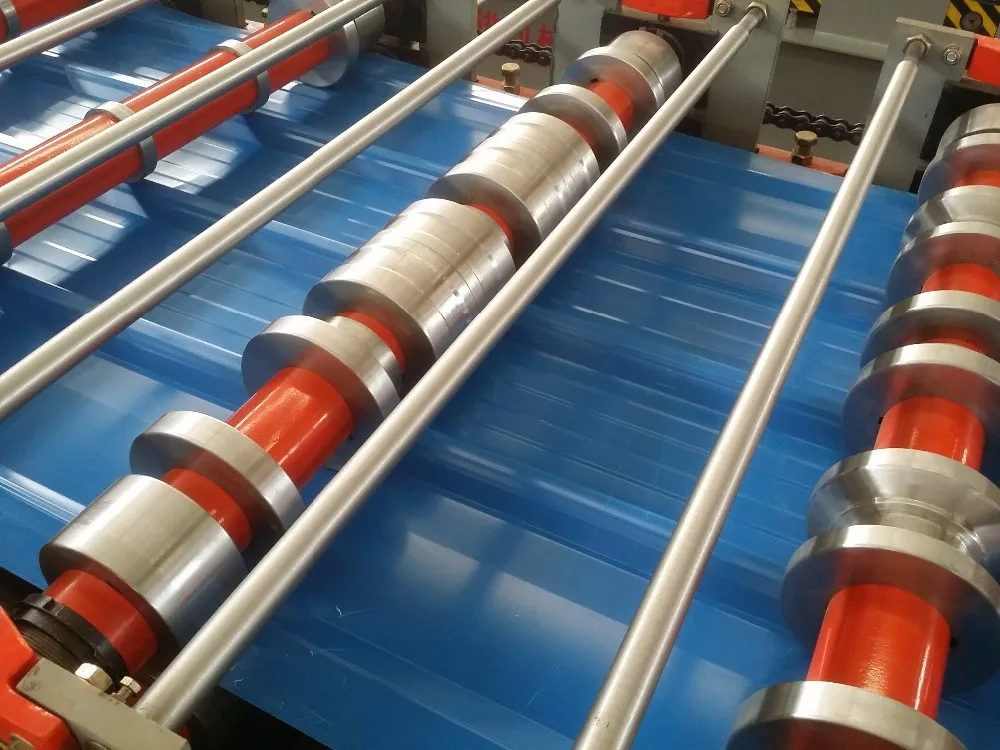

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated

Main Features

Name:PLC
Brand: Mitsubishi
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

Machine Parts

Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#

Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
8.7 (L) * 1.65 (W) * 1.2(D)
Weight
6.5 T



Packaging Details

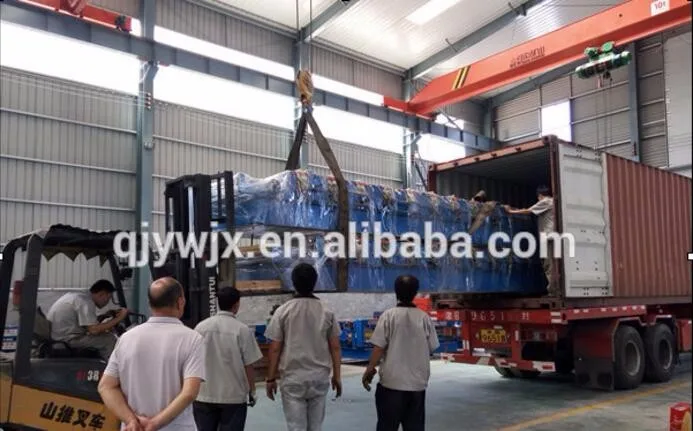

1. We have professional technicians for loading.Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 20 feet container to hold..
