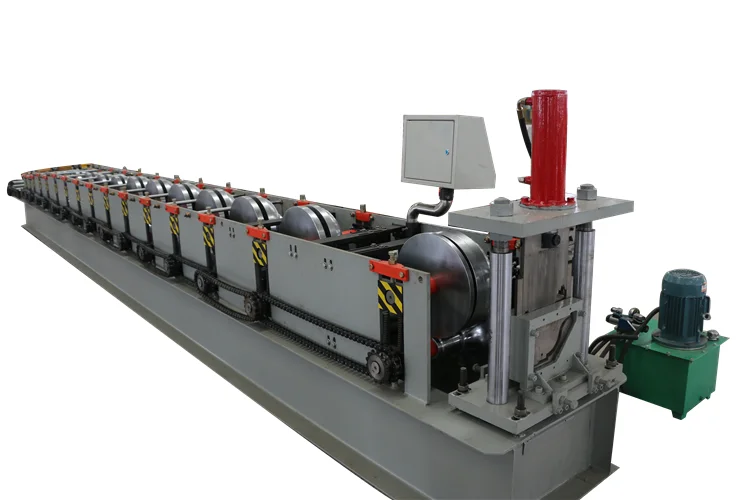

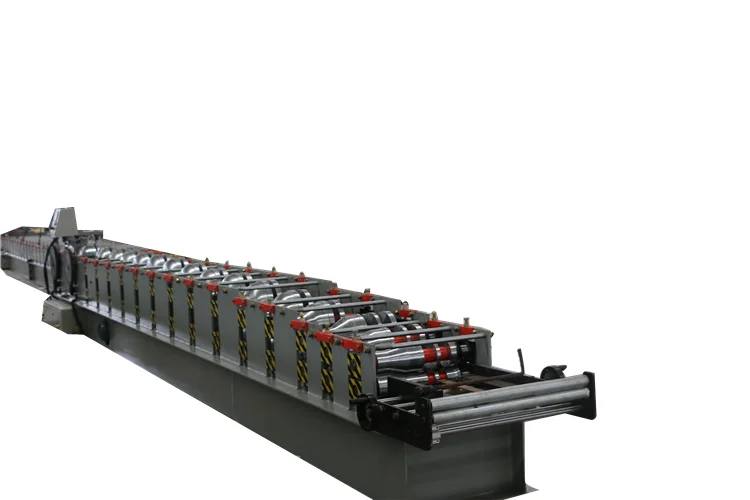

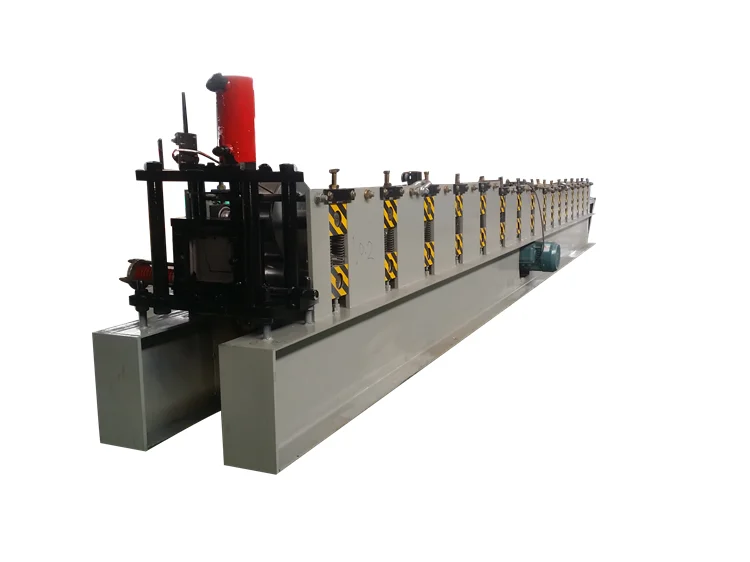

New Type High Quality Rain Gutter Bending Making Machine

  • >=1 Sets
    $12,000.00
Model Number:
YX 430
Power(W):
3kw
Customization:
size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
10-15m/min
Certification:
CE/ISO9001/BV
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
QJ
Voltage:
As customer's request
Dimension(L*W*H):
9500mm*1000mm*1500mm
Weight:
5800KG
Key Selling Points:
Easy to Operate
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
National standard Grey
Under frame:
400H-beam
Transmission type:
Sprocket & Chain
Driving system:
Electrical motor
Usage:
Roof tile
Control system:
PLC
Forming stations:
16
Cutting blade material:
Cr 12 Mov
Raw material:
PPGL/PPGI/GI/AI
Warranty:
1 year
Supply Ability
Supply Ability:
30 Set/Sets per Month New Type High Quality Rain Gutter Bending Making Machine
Packaging & Delivery
Packaging Details
New Type High Quality Rain Gutter Bending Making Machine
Waterproof package, main body is packed by plastic film, and fixed well by wire rope in container.
Port
Tianjin port, China

New Type High Quality Rain Gutter Bending Making Machinene



Product Description

The finished product of New Type High Quality Rain Gutter Bending Making Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. New Type High Quality Rain Gutter Bending Making Machine



No.New Type High Quality Rain Gutter Bending Making Machine
Sample
1Profile SizeYX 430
2Suitable Raw Material 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3Under Frame400 H-beam
4Sidewall 16mm
5Connect Bar25mm, zinc plated

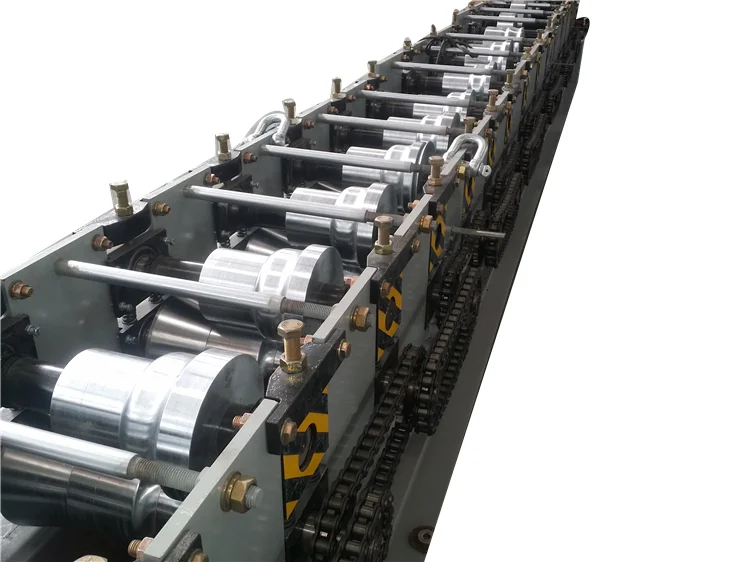

6RollerHigh grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7Shaft70mm, solid, finish turning, cylindrical grinding, with keyway
8Forming Stations 16
9PLC DELTA, TAIWAN
10Main Motor 3kw, Lichao, Shanghai, with reducer
11Hydraulic Pump station 3kw
12Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder
13Oil paintNational standard grey
14Computer screenDELTA, TAIWAN
15Chain 1inch



Customers

 DOMINICA CUSTOMER



Certifications



Our Services
ItemNameQty
1Manual Decoiler1
2Feeding platform with hand cutting system1
3Main forming system1
4Hydraulic cutting system1
5Hydraulic pump station1
6Electrical motor1
7PLC control system1
8Touch screen operation1
9Finished products receive table1
10Safety shield(optional)1



Packaging & Shipping

FAQ





Company Information

We are 10 years leading roll forming machine manufacturer, the following picture is our general plant.

Here is our new factory, we adopt top technology and high grade raw material to make the best roll forming machines for all of our customers. New Type High Quality Rain Gutter Bending Making Machine

As the professional manufacturer, we can guarantee the quality of roll forming machine and technical service for you all the life ! New Type High Quality Rain Gutter Bending Making Machine
