Cheaper CZ Purlin Roll Forming Machine Steel Frame and Purlin Making Machines

FOB Reference Price:Get Latest Price
$12,000.00 - $26,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Z100-300
Max. Working Width:
customizable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1.5 years
Power(W):
15kw
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
Normal Pressures
Production Capacity:
10-15m/min
Place of Origin:
Hebei, China
Brand Name:
FORWARD
Voltage:
380V 50HZ 3Phase
Dimension(L*W*H):
11800*1650*1600mm
Weight:
5.5T
Product name:
Steel Frame and Purlin Making Machines, CZ Purlin Roll Forming Machine
Control system:
PLC(Delta, Taiwan)
Color:
Grey
Roller material:
GCr15
Shaft material:
45# High Grade Steel
Chain:
2 inch, double
Pump station:
5.5kw
Shafts:
80mm
Forming stations:
15
Sidewall:
20mm
Supply Ability
Supply Ability:
30 Set/Sets per Month Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Ma
Packaging & Delivery
Packaging Details
Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine
Main body is packed by plastic film. and fixed well by wire rope in container.
Port
Tianjin port, china
Video Description

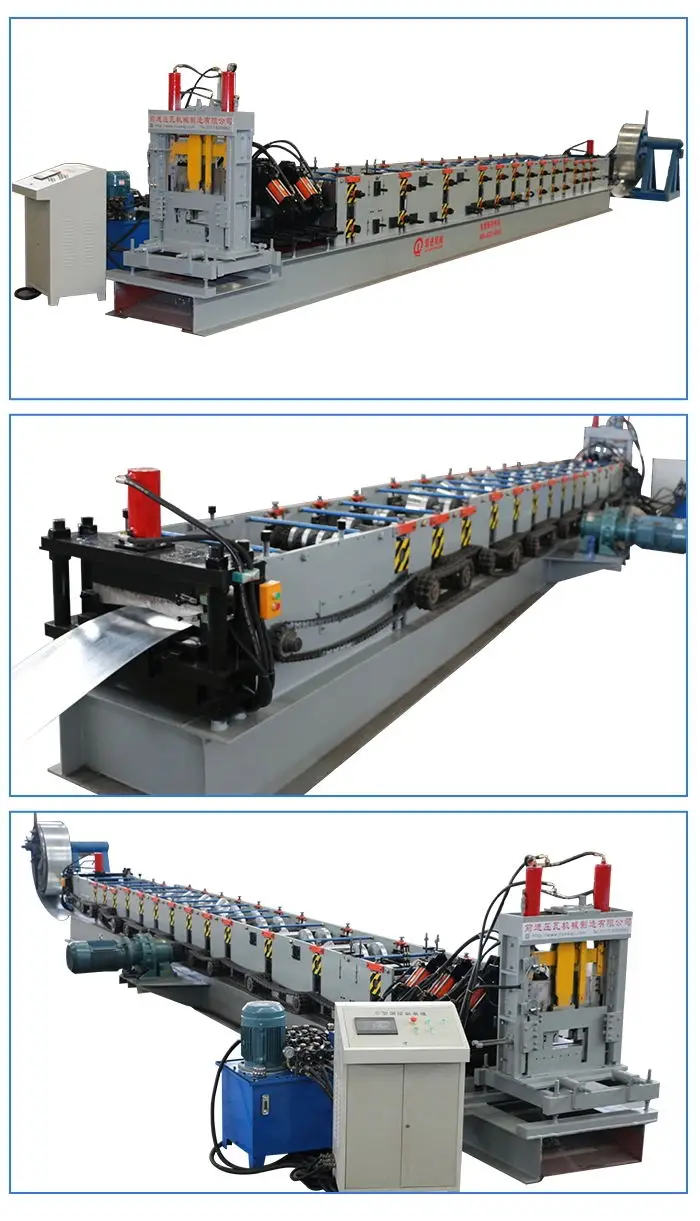

Steel Frame and Purlin Making Machines, CZ Purlin Roll Forming Machine



Product Description

The finished product of Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine  is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



No. Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine
Sample
1Profile SizeYX 100-300
2Suitable Raw Material 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3Under Frame400 H-beam
4Sidewall 20mm
5Connect Bar25mm, zinc plated
6RollerGcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7Shaft80mm, solid, finish turning, cylindrical grinding, with keyway
8Forming Stations 15
9PLC DELTA, TAIWAN
10Main Motor  15kw, Lichao, Shanghai, with reducer
11Hydraulic Pump station 5.5 kw
12Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder
13Oil paintNational standard grey
14Computer screenDELTA, TAIWAN
15Chain double 2inch

Packaging & Shipping





About us



FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. Whats your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?

A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).

      2) Shanghai Hongqiao to Cangzhou West (4.5 hours)

      3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

When you arrive our station, we will arrange to pick up you there!
