High Quality Wall And Roof Sheet Tile Making Machinery Price

  • >=1 Sets
    $16,000.00
Model Number:
YX25-196-784
Power(W):
5.5 KW
Customization:
Size (Min. Order: 1 Sets)
Samples:
$16,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
3-9m/min
Certification:
CE/ISO9001 SGS BV
Condition:
New
Place of Origin:
China
Brand Name:
Forward
Voltage:
As your request
Weight:
4.5T
Use:
Roof
Dimension(L*W*H):
8500*1400*1400MM
Tile Type:
Colored Glaze Steel
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Easy to Operate
Name:
High Quality Wall And Roof Sheet Tile Making Machinery Price
Raw material:
PPGI Aluminum GI
Color:
As Client's Request
Usage:
Roof Tile Panel
Production speed:
Customized as your request
Cutting blade material:
Cr12Mov
Control system:
PLC(imported Brand)
Roller material:
45#steel Chrome Plated
Shaft material:
45# Steel Forging Treatment
Profile:
can be customized as your request
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1.5 years
Supply Ability
Supply Ability:
30 Set/Sets per Month High Quality Wall And Roof Sheet Tile Making Machinery Price
Packaging & Delivery
Packaging Details
High Quality Wall And Roof Sheet Tile Making Machinery Price: Waterproof package. Packed by plastic film, and fixed well by wire rope in 20/40ft container.
Port
Tianjin Port, China
Video Description

High Quality Wall And Roof Sheet Tile Making Machinery Price

Product Description

The finished product of High Quality Wall And Roof Sheet Tile Making Machinery Price is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



No.High Quality Wall And Roof Sheet Tile Making Machinery Price
Sample M}FI3FN~A2[8TRBN(UU~G$3.png
1Profile SizeYX 25-196-784
2Suitable Raw Material 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3Under Frame350 H-beam
4Sidewall 16mm
5Connect Bar25mm, zinc plated
6RollerHigh grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7Shaft70mm, solid, finish turning, cylindrical grinding, with keyway
8Forming Stations 15
9PLC DELTA, TAIWAN
10Main Motor5.5kw, Lichao, Shanghai, with reducer
11Hydraulic Pump station4kw
12Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder
13Oil paintNational standard grey
14Computer screenDELTA, TAIWAN
15Chain 1inch

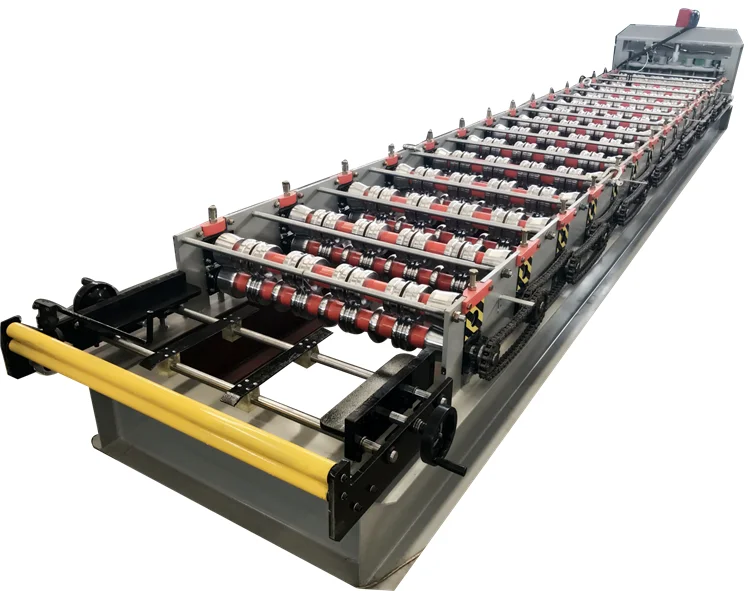

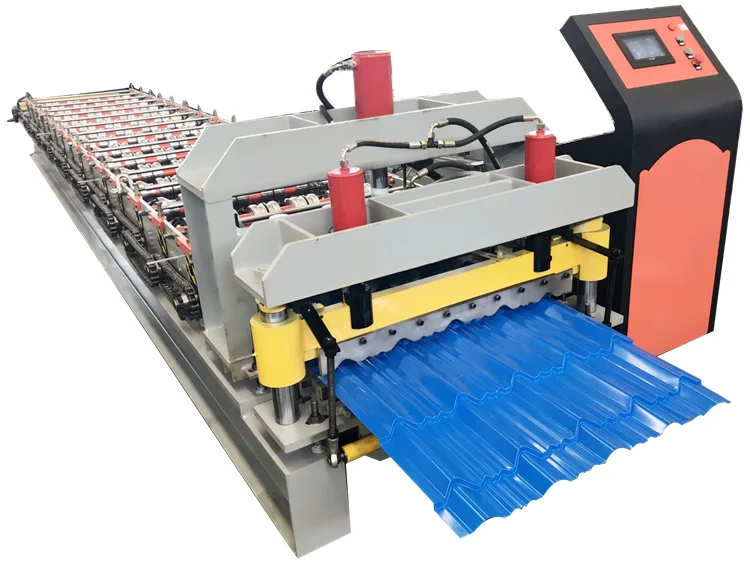

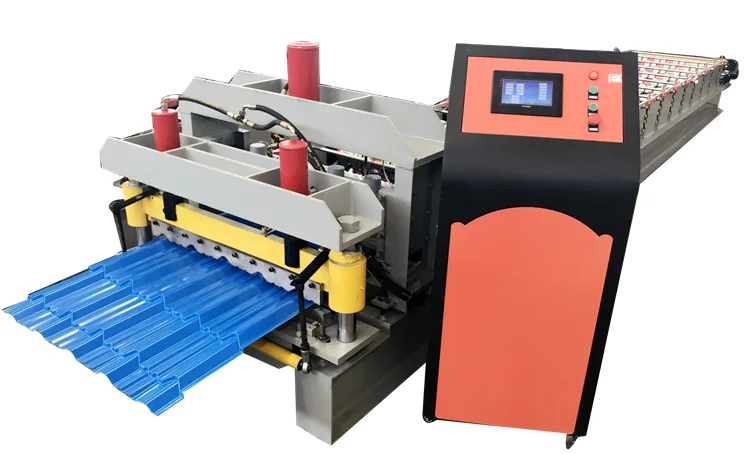

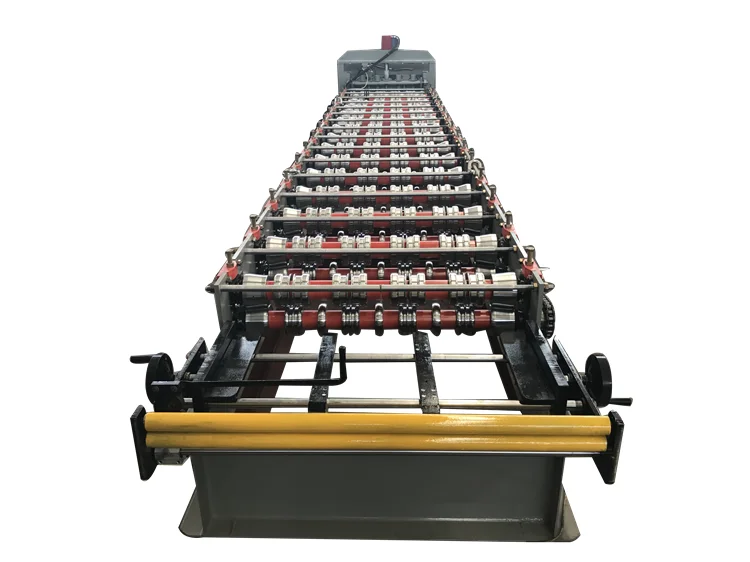

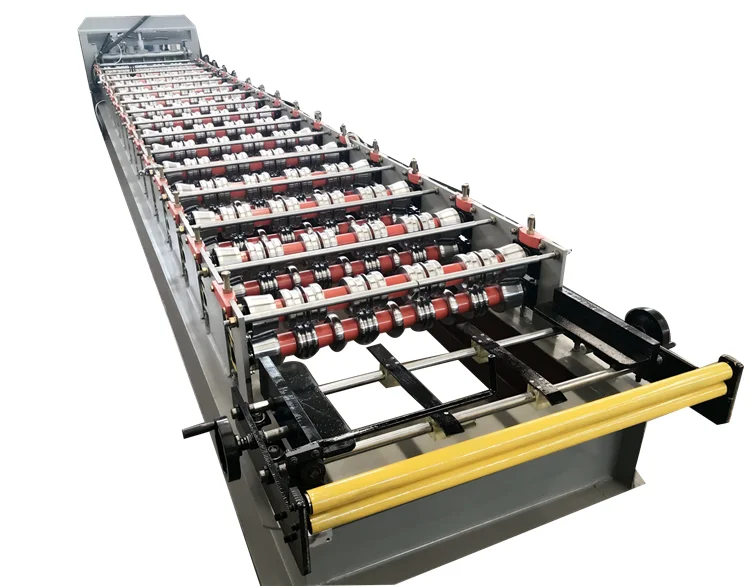

 tile machinery06.pngtile machinery05.pngtile machinery04.pngtile machinery01.pngtile machinery02.pngtile machinery02.png

Production Process


Our Services
ItemNameQty
1Manual Decoiler1
2Feeding platform with hand cutting system1
3Main forming system1
4Hydraulic cutting system1
5Hydraulic pump station1
6Electrical motor1
7PLC control system1
8Touch screen operation1
9Finished products receive table1
10Safety shield(optional)1
11Hydraulic decoiler(optional)1
12Automatic stacker(optional)1




Customers



Wendy customers.jpg





Hot Sale Machines

Here are different model roll forming machines for your reference, and we can customize the roll forming machine exactlly according to your profile drawing.




Company Information

We are 10 years leading roll forming machine manufacturer, the following picture is our general plant.

Cangzhou Forward Roll Forming Machinery Company.jpg



Here is our new factory, we adopt top technology and high grade raw material to make the best roll forming machines for all of our customers.




As the professional manufacturer, we can guarantee the quality of roll forming machine and technical service for you all the life !
