1100 type Metal Roofing Glazed Tile Step Roofing Tile Roll Forming Making Machine

FOB Reference Price:Get Latest Price
$9,500.00 - $12,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
YX24-183.3-1100
Power(W):
5.5KW+4KW
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
3-4 m/min
Certification:
ISO9001
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
QJ roof tile making machine
Voltage:
380V 50HZ 3 Phase
Weight:
5.5 Tons
Use:
Roof
Dimension(L*W*H):
5500*1650*1200mm
Tile Type:
Colored Steel
Item:
metal cold glazed tile roll forming machine
Control system:
Taiwan Delta
Raw material:
PPGI
Cutting blade material:
Cr 12Mov
Roller material:
45# Steel Plated
diameter of shaft:
70mm
base frame:
350H
wall plate:
16mm
motor:
shanghai lichao
control way:
HIM
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1.5 years
Supply Ability
Supply Ability:
25 Set/Sets per Month 1100 type Metal Roofing Glazed Tile Step Roofing Tile Roll Formi
Packaging & Delivery
Packaging Details
1100 type Metal Roofing Glazed Tile Step Roofing Tile Roll Forming Making Machine
1.Main machine is naked. PLC system is packed by wooden box.
2. need a 40GP to hold.
Port
Tianjin Port

1100 type Metal Roofing Glazed Tile Step Roofing Tile Roll Forming Making Machine

Product Description



1.Brife introduction

The roof panels made by our roll forming machine have beautiful appreance and bright color.They are widely used in gardens ,factories ,resorts,hotels, exhibition halls,vacationlands,ancient architectures and modern villas.



2.Technology paramater



A General

suitable material PPGL
material thickness0.25-0.8mm
length of the sheet you can set the length according to your need. It is controlled by PLC, which can ensure the accurancy of +_1mm
dimensionabout 8.5*1.65*1.2m,AS Per the drawing .
cutting automatically stop and cutting when it comes to the set



B.Components Details

Roller material Hight gread 45#steel,hard chrome plating0.05mm
Main Frame 400H steel,more stable and no shaking
Middle plate16mm.we use thicker plates to ensure stability of our products.
Forming steps 16 steps,according to the drawing
shaft material Φ70mm,high grade 45# steel
treating process:jtempering-finish turning,high rigidity,hard to deform
cutting blade  material Cr12Mov
treating process: heat treatment-plane abrasion-wire electrode cutting

 C Electric components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
 Screen 7 inch touch screen, easy to operate.
 PLC Delta DVP14ES

 Well-adapted to various conditions, such as moisture,

 electromagnetic  disturbance.

 Frequency Converter

 Delta

It has the advantage of slowing down before cutting,

 to ensure the length  accuracy (±1mm,

 far better than industrial standard ±3mm).

 Length

 Measurement Device

 Omron, made in Japan.
 It features with high accuracy and stability.

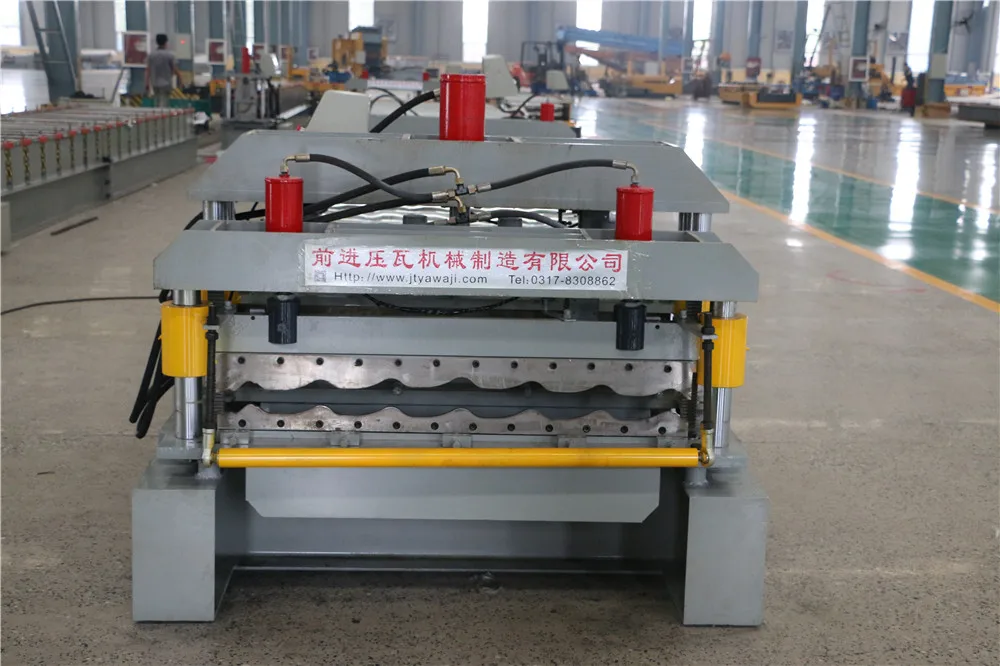

 2.More machine details




Packaging & Shipping


1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2.Transportation : Machines need one 40 feet container to hold



Our Services


1. We provide our customers with 1 year warranty.

2. Any parts damaged because of quality problem will be changed for free within the first year.

3. Technical support is provided for free at the whole life of the machine.

4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.

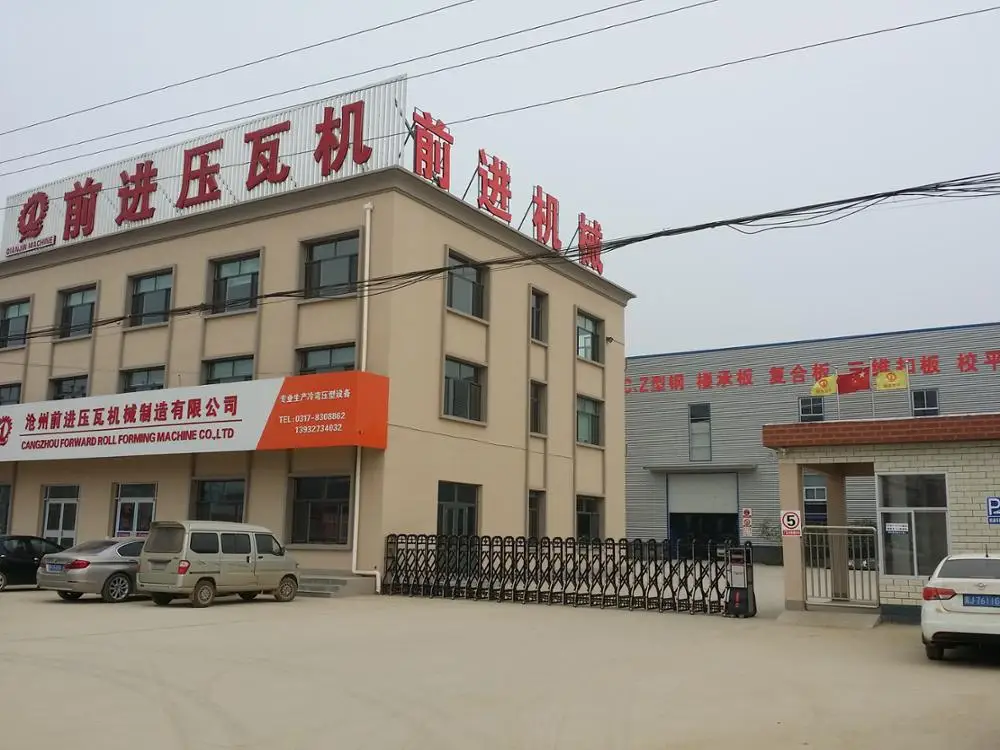

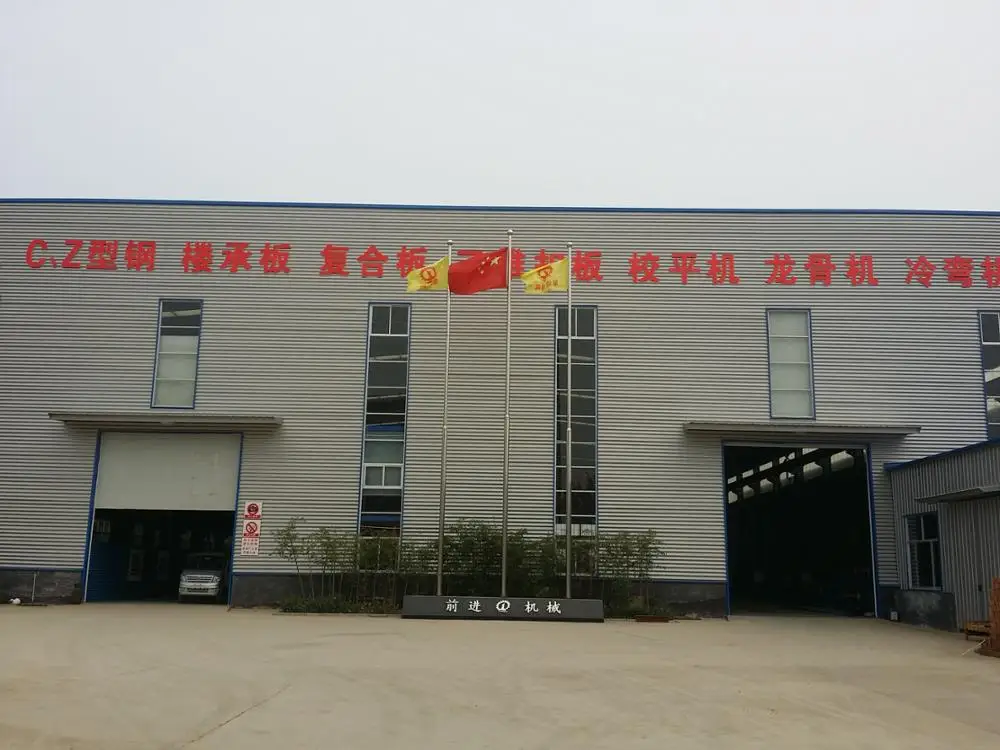

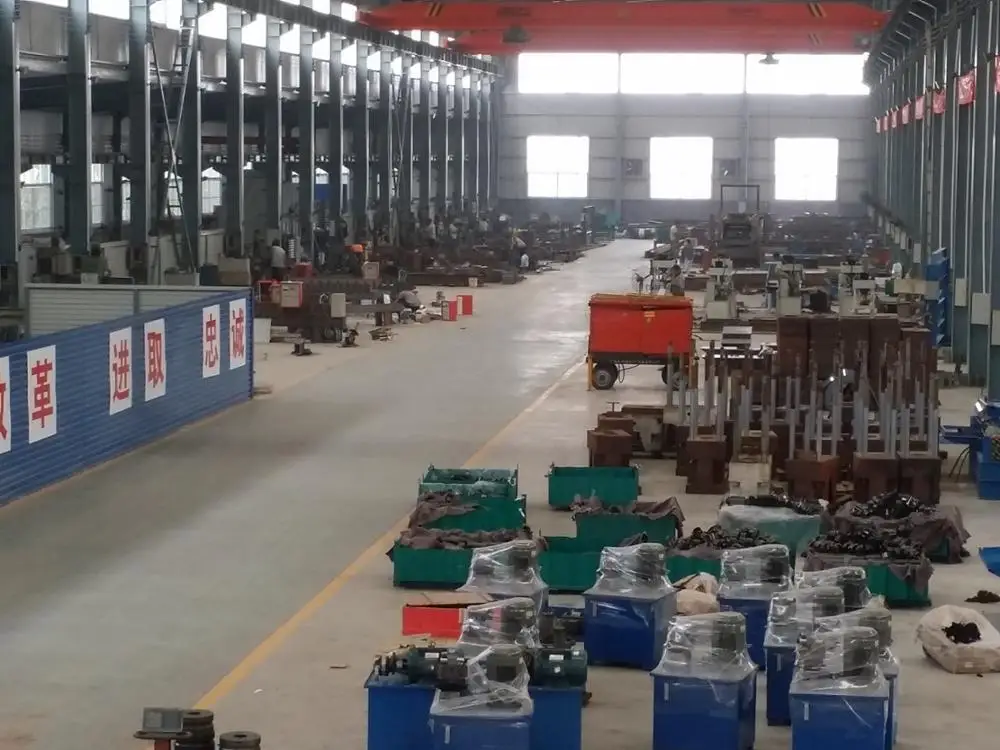

Our Company

Established in 2008, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.

    The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets. Sincerely hope to cooperate with you.




FAQ

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.

Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.


Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.

Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.

Contact me

1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. One-Years warranty,  whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .


If any questions, you can call me mobile phone at any time0086-15831899288

If you want tget more pictures or videos of the machinesI can send them to you by Email
