Latest design C channel steel profile roll forming machine

  • >=1 Sets
    $9,500.00
Model Number:
Customizable
Power(W):
5.5kw
Customization:
Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
18month
Type:
Tile Forming Machine
Production Capacity:
12-18m/min
Certification:
TUV / ISO / CE
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant
Condition:
New
Tile Type:
Colored Steel
Use:
Steel Structure
Place of Origin:
Hebei, China
Brand Name:
QJ
Voltage:
380V 50HZ 3 Phase
Dimension(L*W*H):
4500*900*1100mm
Weight:
3000kg
Key Selling Points:
Long Service Life
Suitable material:
PPGI/GI/PPGL/AL
Material Thickness:
0.2-0.6mm
Color:
Grey or as the request
Roller station:
12
Roller material:
45# Forged Steel
Pressing type:
Hydraulic Guide Pillar Cutting
Cutting type:
Hydraulic Guide Pillar Cutting
Cutting blade material:
Cr12 Quenching
Main frame:
600 H-beam
Name:
Latest design C channel steel profile roll forming machine
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude roll forming machine will be packed in 40 feet container with steel rope fixed.
Other small components will be packed with waterproof cloth and cardboard.
If the machine is too long, we will divide it into two parts and pack them in one package with welding.
Port
Tianjin Port

Latest design C channel steel profile roll forming machine

Product show

Key Parameters



Light gauge steel keel roll forming machine

key parameters

Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
Thickness of coil sheet 0.2-0.6mm
UsageLight steel keel
Effective width75mm
Material of main frame 600H steel
Diameter of Soild shaft70mm, high grade 45# steel
Roller

High grade 45# steel, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm

Thickness of middle plate

16mm, 45# steel plate

Forming station

14rows

Drive type

By chain(1.0 inch), link bearing model 6210

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

Sidewall connection bar

25mm, zinc plated

Forming speed

About 12-18m/min

Hydraulic pump station

4.0 kw, 40# hydraulic oil

PLC

DELTA(TAIWAN)/Mitsubishi

Material of razor blades

Cr 12, quenching 58-62

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

Switch

CHNT

Frequency changer

SAJ

 Note:  Above is standard parameters.

           For latest information, please contact us to ask for.

Product Details

Customizable machine is available according to your specail requirements.

Please contact us to ask for specific profile drawing catalog.


 >>Light gauge steel keel roll forming machine equipment parts



Roll forming system
Roller station12 Steps+3Straighting rollers
Shaft Diameter50mm-0.01mm with Key-way
Roller MaterialCr12 with key-way
Heat TreatmentVacuum quenching upto hardness 58
Fine MachiningCNC Lathe after vacuum quenching
Machine Structure 5mm under-frame and 20mm worktable
Motor Power5.5KW with PM250(or K-type )Reducer
Transmission MethodAll gear with high frequency quenching
Memorial Gateway25mm thickness A3 Plate
Gateway ProcessSquare side with fly edge machine
Production Speed30-40m/min



Hydraulic cutting system
Cutting MethodFull-auto hydraulic servo-tracking cutting
Hydraulic System5.5KW(if hot-weather with water-cooling)
Speed AdjustmentFrequency Changer Control
Cutter MaterialCr12Mov
Cutter Processingelectric spark,polishing machine and wire-electrode cuttingafter heat-treatment



Decoiler Receiving Table
Un-coiler TypeManual OperationTotal Length3000mm
Loading CapacityMax 1500KGFrame StructureAngle Steel with Metal Plate
Inner Coil Diameter460-510mmFunctionLet the finished production freely

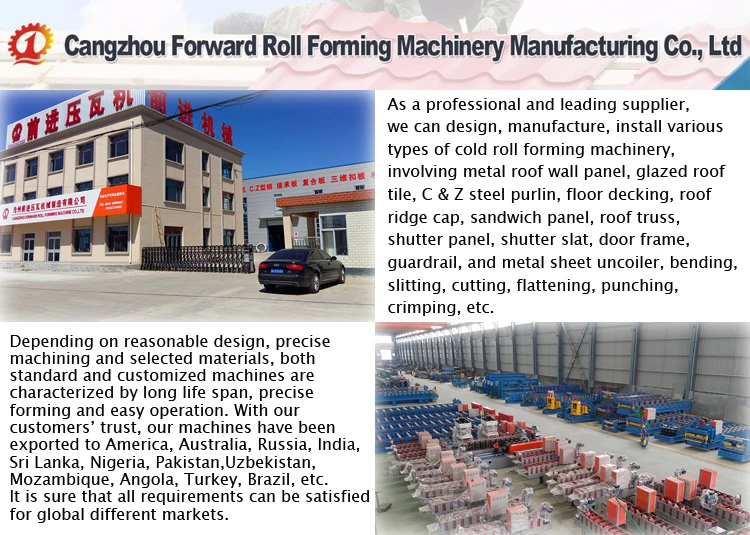

About Us
