Lipped C Channel Roll Forming Machine

  • >=1 Sets
    $14,800.00
Model Number:
C.Z Purline Machine
Power(W):
7.5kw
Customization:
size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
0-15m/min
Certification:
CE/ISO9001
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
qj
Voltage:
380V 50Hz 3phases
Weight:
8T
Use:
Roof
Dimension(L*W*H):
8500mm*1600mm*1500mm
Tile Type:
Steel
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Easy to Operate
Roller station:
12Steps
Under Frame:
Welded structure
Shaft diameter(Solid):
70mm-0.01~-0.03(with key-way)
Shaft material(Hard):
High grade 45# steel,heated and quenched,cylindrical grinding,
Roller material(Hard):
Cr12,heated and Quenched,polishing
Bearing Type:
Standard
Voltage Standard:
380V/3Phases/50Hz
Motor Power:
7.5KW(Lichao,Shanghai)
Cutting type:
Hydraulic Operation, Stop to post and post to cut
PLC System:
Delta Brand,Taiwan
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1.5 years
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Lipped C Channel Roll Forming Machine are nude packing in the 40 feet container , fixed well with oil rope , control cabinet and all the accessories with waterproof .
Port
Tianjin Port

Lipped C Channel Roll Forming Machine

Product Description



 this product is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on.





 technical detail



Roller station

12Steps

Under Frame

Welded structure

Shaft diameter(Solid)

70mm-0.01~-0.03(with key-way)



Shaft material(Hard)

High grade 45# steel,heated and quenched,cylindrical grinding,



Roller material(Hard)

Cr12,heated and

Quenched,polishing

   Bearing Type

Standard

Transmission Gear

Heat treatment

Motor Power

7.5KW(Lichao,Shanghai)

Forming Speed

0-20m/min(Non-Stop)

Hydraulic Cutting

Tracking Length To Cut

 Pump power

7.5KW

Hydraulic pressure

20 Mpa

Voltage Standard

       380V/3Phases/50Hz

Cutting die

Cr12Mov, Quenched processed










 Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

Using high qualiy thick shaft, the strength is more durable.















Machine body

The main body of the body without welding, all the use of cast steel,  prevent the host body deformation.





















 PLC Control System

Usually we prodvide the Delta PLC control system, but we can make that according to your need.



















Lipped C Channel Roll Forming Machine

UncoilingFeeding—Roll forming—Cut to length—Cutting—Output table











Relational Production

Our Services



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas

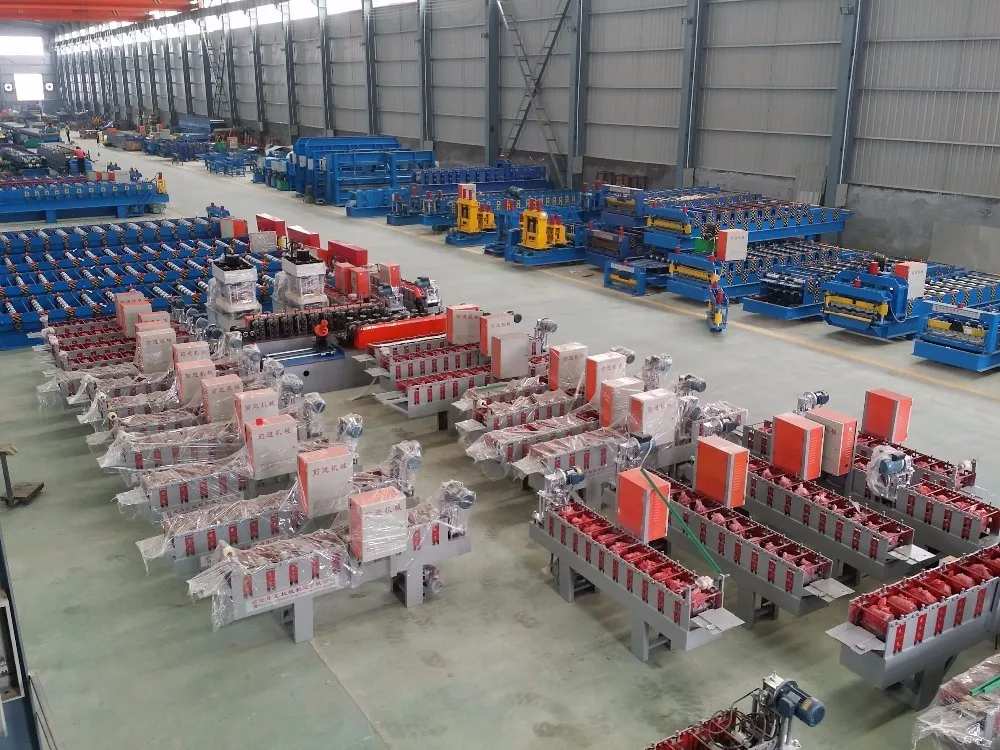

Company Information







cangzhou forward roll forming machine machinery co ,ltd,

ltd is cthemanufacture manufacture sepcialized ,in coid b

ending roll forming machine equipment and automatic pr

oduction line,the new company was established due to

the need of the rapid development of international trade,

main products are color steel roll forming machine ,classi

cal glazed tile forming machine ,c/z puline machine for light steel structure building ,floor deck forming machine sandwich

panel production line ,fast guardrail roll forming

line and various kind of full automatic cold bending

roll forming machine equipment.



we have approved certification of ce iso9001,the

concept control everyone orocess and perfect all

products is curved in everyone mind ,each machine

will be via load carrying test before leaving factory,

problem machines will never be delivered to customer.



we are willing to promote the economic and technical

exchange with the word ,and do positive work to

enhance the between people from different countries,

we sincerely hope you and hand in hand ,create the

glorious future altogether.







Packaging & Shipping







customer visit





Certification

FAQ

A. Foreign commissioning

We will arrange our professional engineers to help you install and debug the machine well.   Buyer should pay$100 for each engineer every day and responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.

B. warranty period

1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.

2.If the equipment are out of work in the guarantee period, the buyer need our repairman to go to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.

C. Training

During installation and adjustment of the equipment, our engineers are able to provide the training that

buyer’s personnel request to operate and maintain the equipment.

Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. services

Lifetime services to every customer.

Welcome to contact and visit us.Waiting for your cooperation sincerely.
