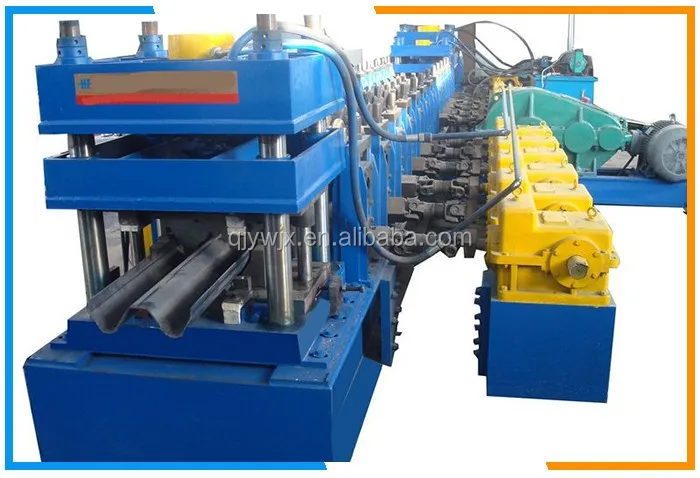

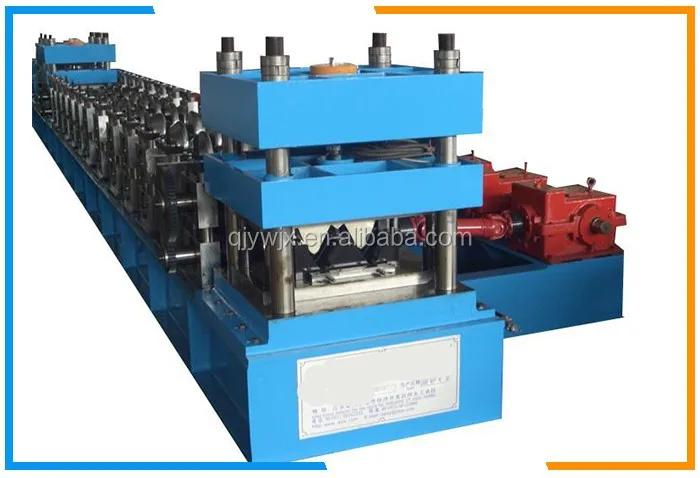

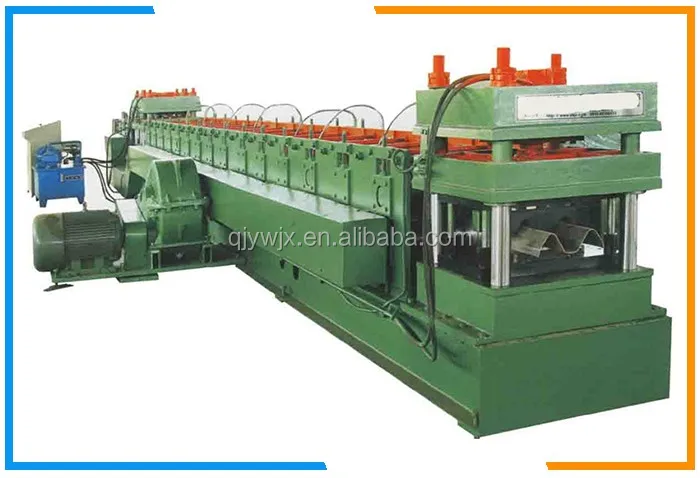

Highway road crash barrier making machine highway guardrail roll forming line

  • >=1 Sets
    $50,000.00
Model Number:
YX-192
Power(W):
45kW
Customization:
OEM (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
10-15M/min
Certification:
SGS TUV
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
QJ
Voltage:
380V
Weight:
15T
Use:
highway guardrail
Dimension(L*W*H):
13.5mm*2.7mm*1.6mm
Tile Type:
Steel
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Easy to Operate
Roller Material:
Gcr15Bearing Steel Treatment HRC58-62
Cutting mould:
Cr12 mould steel with quenched treatment
Motor Power:
45kW
Shaft material:
Highway road barrier machine
Under Frame:
450H-beam
Tranmission Method:
Universal joint transmission gear box
Leveling Motor Power:
5.5kW
Sidewall Thickness:
25mm
Pressure:
20Mpa
Product name:
Guardrail
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
18 months
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Packing In The 40' Container.
Port
Tianjin Port

Highway road crash barrier making machine highway guardrail roll forming line






Rolling Material

W:480mm,T:3-4mm,Q235AGalvanized Coil

Rolling Speed

10-15M/min

Under Frame

450H-beam

Sidewall Thickness

25mm

Roller Station

13Groups

Roller Materail

Gcr15Bearing Steel Treatment HRC58-62

Shaft Materail

High grade 45# forging steel with cylindrical grinding

Shaft Diameter

95mm

Main Motor Power

45kw

Tranmission Method

Universal joint transmission gear box

Leveling Motor Power

5.5kW

Hydraulic Motor Power

15kW

Pressure

20Mpa

Punching&Cutting Method

adopt hydraulic driving, flat sheet pre-punch, post to cut after roll forming

Punching&Cutting Mold

Cr12quenching treatment,HRC58-60

Electrical

whole set adopts industrial computer PLC frequency changing controlled for length to cut tolerance≤1.5mm

Whole unit size(mm)

13500x2700x1600




Main Structure Components

QJ-192Type Highway Guardrail Roll Forming Line is consist of 5T passive decoiler,transmission device,leveling device,3 units pre-punching device,roller forming system,post to cut after forming,Computer control cabinet,and finished support table.

Processing Sketch

Passive Decoiler--->Feeding Straighting--->Seven Leveling Rollers--->Flat Pre-punching--->Roll Forming--->Post to Cut--Exit Rack












3



Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.

Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.


Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.

Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
      2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
