Fully Automatic Steel Metal Rib Roof Panel Rolling Forming Machine

  • >=1 Sets
    $13,500.00
Model Number:
YX28-200-1000
Power(W):
5.5KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
size (Min. Order: 1 Sets)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Type:
Tile Forming Machine
Production Capacity:
20 Set/Sets per month
Certification:
CE/ISO/TUV
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant
Condition:
New
Tile Type:
Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
QJ
Voltage:
380V 50HZ 3Phase
Dimension(L*W*H):
11M*1.5M*1.4M
Weight:
6800KG
Key Selling Points:
Easy to Operate
Name:
2019 Hot Sale Trapezoid Roof Sheet Forming Machine
Raw material:
Color Steel
Usage:
Roof Tile Panel
Bearing Type:
Standard 6210
Control system:
Delta PLC
Cutting type:
Automatic Hydraulic Cutting
Cutting blade material:
Cr 12 High Grade Steel
Material of rollers:
Forged C45 Steel
Roller material:
High-grade 45# Steel
Shaft diameter:
70mm-0.01~-0.03(with Key-way)
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
2019 Hot Sale Trapezoid Roof Sheet Forming Machine is nude packing in the 40FT container , steel rope fixed and other components with plastic file packed.
Port
TIANJIN PORT
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

Fully Automatic Steel Metal Rib Roof Panel Rolling Forming Machine

Product Description



1.High Precision And Speed

2.CE,ISO certification

3.Customization Accept

Suitable material

Color steel sheet , galvanized steel sheet,

Main motor power

5.5KW with Cycloidal reducer

Hydraulic station power

5.5KW(Lichao,Shanghai)

Hydraulic oil

40#

Thickness

0.3mm~0.8mm

Diameter

Φ70mm

Material expand width

1000mm-1250mm

Electric tension

380V 3phase 50HZ

Material of roller

High grade 45# forged steel,hard chromed 0.07MM

Rolling galvanization thickness

0.05mm

Processing speed

0-3.5m/min

Processing precision within

10m+/-1.00mm

Material of cutting blade

Cr12Mov quenched

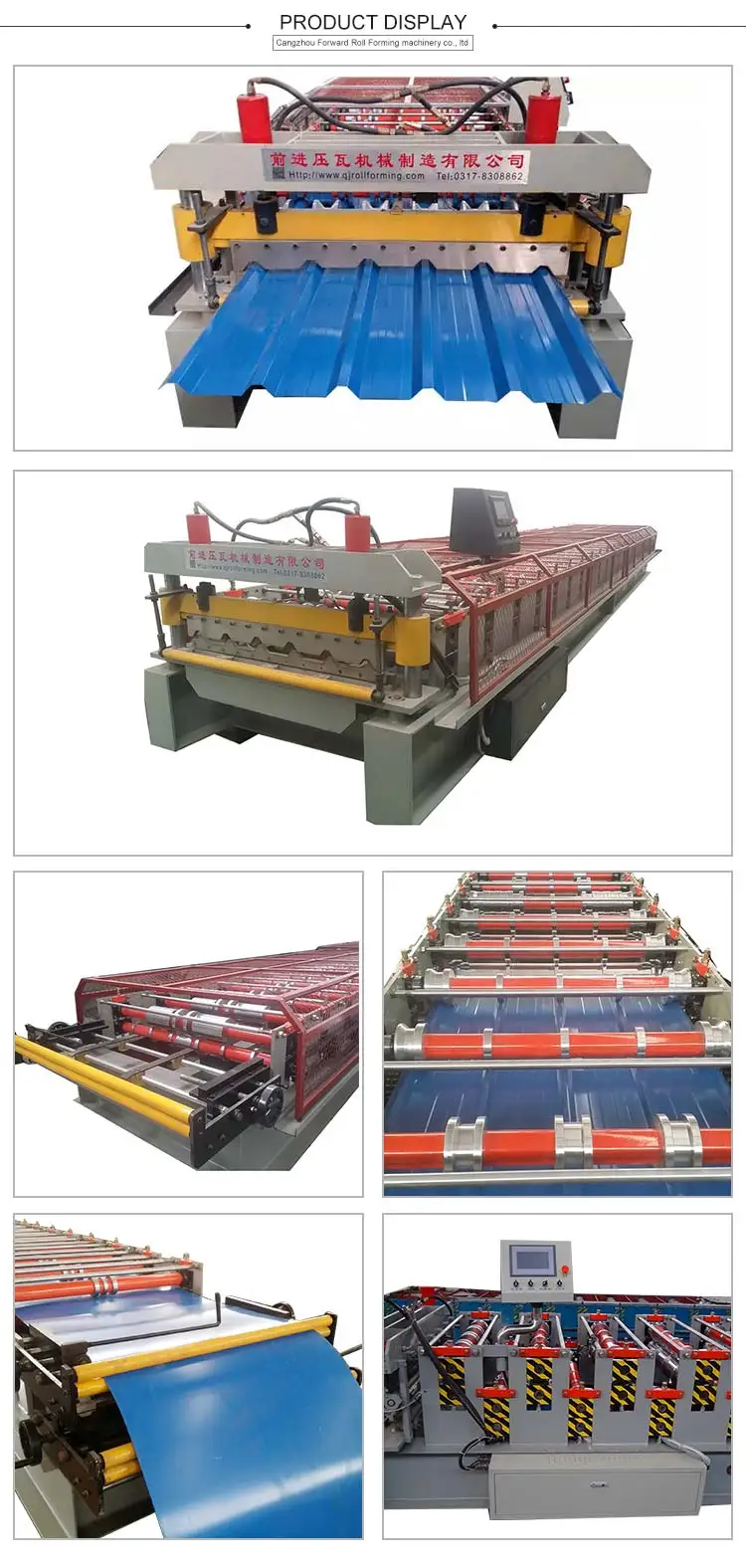

Product Show
Hot Sale

About Us

Product Application



FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?

A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).

      2) Shanghai Hongqiao to Cangzhou West (4.5 hours)

      3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

When you arrive our station, we will arrange to pick up you there!
