high quality cnc glazed tiles roofing roll forming machine/ corrugated iron sheet making machine

  • >=1 Sets
    $30,000.00
Model Number:
QJ 25-205-1025
Power(W):
5.5kw
Customization:
oem (Min. Order: 1 Sets)
Samples:
$30,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
10-15 m/min
Certification:
TUV,ISO ,CE
Condition:
New
Place of Origin:
China
Brand Name:
QJ
Voltage:
380v
Weight:
5.5t
Use:
Roof
Dimension(L*W*H):
8m*1.3m*1.3m
Tile Type:
Colored Steel
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Easy to Operate
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Field maintenance and repair service
rolling rows:
11 rolls
driving method:
hydraulic
Cutting blade material:
Cr12
material thickness:
0.4-0.7mm
Color:
blue or as your request
Warranty:
18months
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude packing in the 40 feet container but with steel rope fixed well and other compents such as the computer control cabint will be packed with waterproof cloth and cardboard ifthe roll forming is too long we can divide into two parts but in one package with welding
Port
tianjin port
high quality cnc glazed tiles roofing roll forming machine/ corrugated iron sheet making machine
roll forming machine specification

NO.

Item

Specification

1

Processing material

Color steel/galvanized aluminum/galvanized

2

Processing thickness

0.4-0.7mm

3.

main motor power

4KW with Cycloidal reducer

4.

Hydraulic station power

4kw

5.

Hydraulic oil

36#

6. Diameter of principal axis Φ70mm
7. Galvanization thickness 0.05mm
8. Processing precision within 1.00mm

9.

Transmission

Sprocket&Chain(1inch)

10

Roller station

14 Rollers

11

Cutting type

Hydraulic cutting type

Roll forming Machine picture

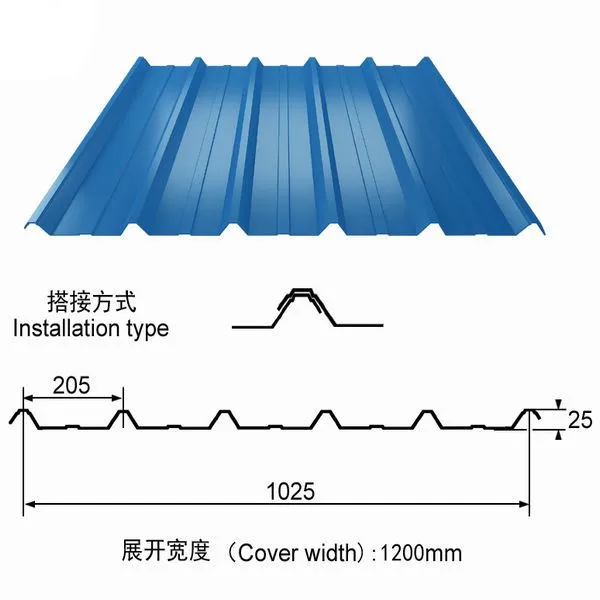

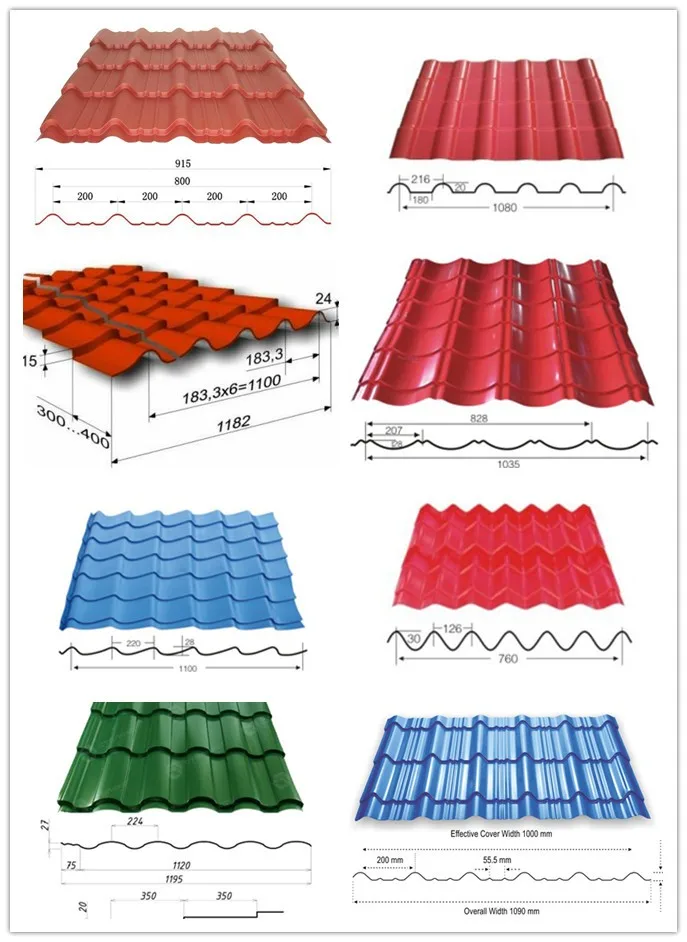

 Orther type of metal roof panel drawing:(We can design and produce the machine as your request,welcome to send us your sepecification or drawing ,we will give you a satisfied solution. )

.jpg



Packaging & Shipping


Our Services

Abroad Installation

Customer Board

Company Information



Factory



FAQ:

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
